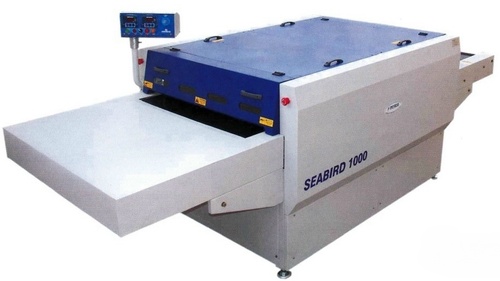

Seabird Straight Linear Fusing Press

Seabird Straight Linear Fusing Press
Seabird Straight Linear Fusing Press
Product Code : 1000
Brand Name : Macro
Product Description
Straight linear fusing press
  1. Ideal for fusing, Shirts, Collars, cuffs, front placket, Trousers, Waist bands, pocket flaps etc. Coats/suits, Coat inner front, pocket flaps and all parts. Shoe/leather, Shoe upper and all types of leather articles, Knitwear, Collars front placket and many other parts. Embroidery applique lining etc.

  2. Production is greatly increased as this is a conveyer type fusing machine.

  3. Curing / fusing of all kinds of inks like direct inkjet printed fabrics and screen printed inks like pigment, khaki etc.

  4. Foil printing on cut parts and roll to roll fabrics.

  5. Dye sublimation printing and bonding

  6. Actual value precise digital temperature control gives best adaptability to fuse any type of interlining to any kinds of fabrics.

  7. Using the SSR electronic switching the temperature difference is kept below +/- 3*C.

  8. Easy to replace belt reduces maintenance down time.

  9. Ultimate tracking through unique belt tracking device.

  10. Low maintenance with few rollers compared to any machine available in the world.

  11. Large diameter of rollers for easy joint rollover and prevents premature joint breakage.

  12. Soft spring mounted tail roller for minimum belt tension.

  13. All world standard parts there by economy in maintenance.

  14. 6 kgs pnematic pressure for out of the world fusing.

  15. Interlocking endless belts for high life of the belt with no crease marks on fused articles.

  16. Rotary scrapper for easy strip off of adhered fusing materials.

  • Model - Seabird 1000

  • Belt width - 1000 mm

  • Heater - 24 Kw/hr

  • Temperature - 220*C Max

  • Power - 440 VAC

  • Machine Dim - L150" W60" H45"

  • Net weight - 1200 Kgs

  • Model - Seabird 1500

  • Belt width - 1500 mm

  • Heater - 30 Kw/hr

  • Temperature - 220*C Max

  • Power - 440 VAC

  • Machine Dim - L150" W80" H45"

  • Net weight - 1500 Kgs
