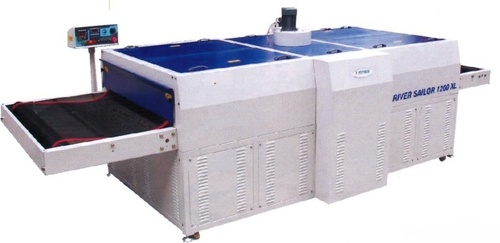

RIVER SAILOR

RIVER SAILOR
RIVER SAILOR
Product Code : 1200
Brand Name : Macro
Product Description
Infra Red Curing Machine
  1. Macro infra red curing technology consumes extremely less electricity, installed with the best infra red tubes with perfect control on temperature and evenness of heat.
  2. Curing machine with leading edge technology for curing requirements of water base, plastisol, pigment and all types of inks.
  3. RIVER SAILOR and MAXCURE comes to you with latest belt tracking mechanism for least swaying of the belt.
  4. Very high insulation offers excellent heat retention.
  5. Adjustable heating panel to feed very thick garments and jackets.
  6. Easy to lay 3 feet entry belt extension for feeding even ready garments and jackets.
  7. Easy to replace belt reduces maintenance down time
  8. Automatic cool down timer to shut of the machine after the machine is cooled down.
  9. All world standard parts, there by economy in maintenance.
  10. Non stick and heat resistant PTFE belt conveyer.
  11. Adjustable entry and exit openings.
  • Model - RS 1200
  • Belt Width - 48 inches
  • Heater/Chamber - 24 kw/hr /10 Feet
  • Temperature - 220*C
  • Power - 440 VAC
  • M/C Dimensions - L 186" W 72" H 50"
  • Net Weight - 950 Kgs
  • Model - RS 1600
  • Belt Width - 62 inches
  • Heater/Chamber - 30 kw/hr /10 Feet
  • Temperature - 220*C
  • Power - 440 VAC
  • M/C Dimensions - L 186" W 86" H 50"
  • Net Weight - 1300 Kgs3
  • Model - RS 90
  • Belt Width - 36 inches
  • Heater/Chamber - 18 kw/hr /10 Feet
  • Temperature - 220*C
  • Power - 440 VAC
  • M/C Dimensions - L 186" W 60" H 50"
  • Net Weight - 700 Kgs
    • Model - MC 900
    • Belt Width - 36 inches
    • Heater/Chamber - 12 kw/hr /6 Feet
    • Temperature - 220*C
    • Power - 440 VAC
    • M/C Dimensions - L 138" W 50" H 50"
    • Net Weight - 450 Kgs
    • Model - MC 600
    • Belt Width - 24 inches
    • Heater/Chamber - 6 kw/hr /6 Feet
    • Temperature - 220*C
    • Power - 440 VAC
    • M/C Dimensions - L 138" W 38" H 50"
    • Net Weight - 300 Kgs
