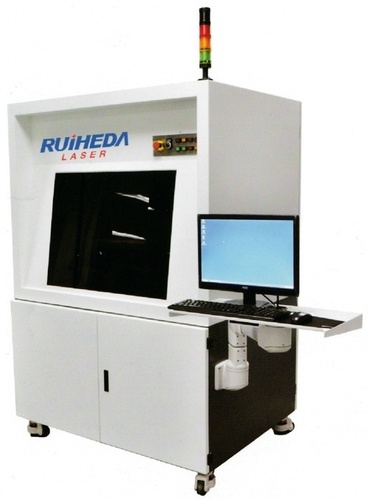

Rhd - Elp System Multi Function Processing Platform

Rhd - Elp System Multi Function Processing Platform
Rhd - Elp System Multi Function Processing Platform
Product Code : RHD-ELP
Brand Name : RADAR LASER
Product Description
Rhd - Elp System Multi Function Processing Platform
IR Fiber : UV Laser : Pico-Second Laser

Working principle :
  1. General processing system platform: apply to FPC cutting, ITO etching, silver pulp etching, covering film cutting and so on.
  2. Can be working with different laser light source:  IR Fiber : UV Laser : Pico-Second Laser

Technical Data :

  • Laser light source    -    355nm ultraviolet
  • Power    -    10w
  • Coaxial video positioning    -    B/WCCD
  • Scanning scope    -    60 x 60mm
  • Diameter of focusing spot    -    20um UV Laser
  • Auto Focusing system    -    Z axis auto focusing
  • Focal point control accuracy    -    0.01mm
  • X-Y platform    -    exchange servo linear motor
  • Basement    -    high precision granite platform
  • Route range    -    300 x 400
  • Resolution ratio of platform movement    -    0.5um
  • Whole body control system    -    industrial PC
  • Auxiliary control system    -    PLC Mitsubishi PLC
  • CCD light source    -    620nm red LED
  • Processing size range    -    360 x 460mm or 500 x 600mm
  • Min. Line width    -    20um
  • Joining correction    -    5um
  • Correction accuracy of x-y platform    -    4um
  • CCD matching accuracy    -    7um
  • Processing Precision    -    20 micron
  • Metal sheet thickness    -    1mm
  • Voltage    -     AC 220v, 50hz, 1p, 3kva
  • Document format    -    DXF, GBR
  • Device weight    -    1500kg
  • Main body dimension    -    1350mm(W) x 1050mm(D) x 1950mm(H)
