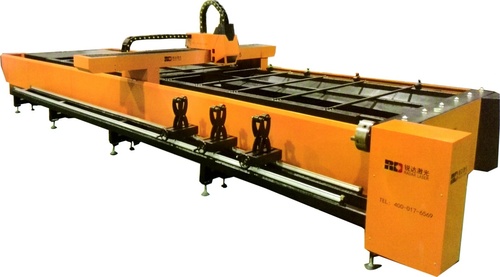

Plates and Pipes Fiber Laser Cutting Machine with Daul-Drive

Plates and Pipes Fiber Laser Cutting Machine with Daul-Drive
Plates and Pipes Fiber Laser Cutting Machine with Daul-Drive
Send Inquiry
Product Code : RD-CF6015A
Brand Name : RADAR LASER
Product Description
Plates and Pipes Fiber Laser Cutting Machine with Daul-Drive (RD-CF6015A)
Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, 0.5-2mm aluminum, 0.5-1mm brass, The metal pipes diameter is from 30-250mm and other metal material

Technical Data
  • Laser power    -    500w
  • Laser wavelength    -    1064nm
  • Working size    -    1500 x 6000mm
  • Max. positioning speed    -   80m/min
  • Max. accelerated    -   0.7G
  • X/Y axis positioning accuracy    -   0.05mm
  • X/Y axis repeating positioning accuracy    -    0.03mm
  • Working voltage -    380v 50hz
  • Total power    -    <10kw
  • Machine weight    -    5500kg
  • Machine outer dimensions    -    8000 x 2450 x 1650mm
  • Transmission    -    precise pinion and rack, dual - drive transmitting
