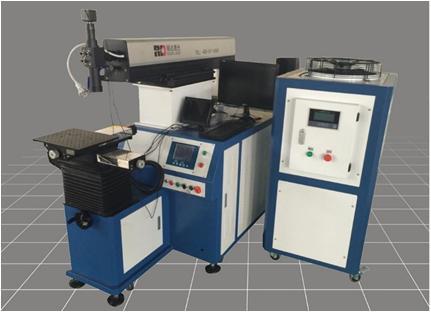

Automatic Laser Welding Machine

Automatic Laser Welding Machine
Automatic Laser Welding Machine
Product Code : RD-WY200A
Brand Name : Radar Laser
Product Description
Automatic Laser Welding Machine (RD-WY200A)
  1. Automatic laser welding machine’s laser wave length is 1064nm, the frequency and impulse width of impulse xenon lamp controlled by electricity power generates light wave and then radiates to YAG crystal, the laser beam is focused by optical lens after it can weld.
  2. PC controls the light precise movement and revolve for work piece and the machine can  automatically weld.
  3. The cavity is galvanized cadmium, photo electric conversion efficiency is high, anti corrosion, high temperature resistant, laser generator is designed by foreign advanced technology.
  4. Whole sealed constant temperature intelligent cooling system, protect cutting head more efficiently and working steady, long term.
 Technical parameters
  • Model No.  -  RD-WY200A,  RD-WY400A,  RD-WY600A
  • Max. laser power  -  200W,  400W,  600W
  • Wave length  -  1064nm
  • Min. light spot diameter  -  0.4mm
  • Welding depth  -  =1.0 mm,  =2.0 mm,  =2.5mm
  • Impulse width  -  0.1-20ms
  • Impulse frequency  -  1-100Hz
  • Working table route  -  300×300×600mm,  300×300×600mm,  500×500×600mm
  • Control system  -  PC/PLC
  • Targeting location  -  CCD/red light/microscope
  • Whole power consumed  -  10KW,  16KW,  20KW
  • Electricity voltage  -  380V/50HZ/60HZ/30A,  380V/50HZ/60HZ/40A,  380V/50HZ/60HZ/60A
  • Main body dimension  -  1320x900x1250,  1520x900x1250,  1520x900x1650
  • Control system dimension  -  730x620x910
  • Cooling system dimension  -  650x560x750
